What is PU paint solvent? TOP 5 common solvents and how to use them

Choosing the right solvent for PU paint is crucial for determining the quality, durability, and aesthetic appeal of the finished paint layer. So, what exactly is PU paint solvent? What are the criteria for selection, the common types of solvents, and the correct mixing ratios? Let’s find out in the following article.

What is PU Paint Solvent?

PU (Polyurethane) paint solvent, also known as thinner, is a liquid chemical used to dilute PU paint, reduce its viscosity, make it easier to apply, and create a thin, even, and beautiful paint film. The solvent not only adjusts viscosity but also improves properties like adhesion, waterproofing, anti-mold, and drying time of the paint. Selecting the correct solvent suitable for the specific type of PU paint is very important to ensure the quality of the paint film and effective application.

Criteria for Choosing the Right PU Paint Solvent

To ensure your PU paint achieves a high-quality finish and aesthetic appeal, you need to carefully consider the following crucial criteria when selecting a solvent.

Evaporation Rate and Solubility of the Solvent

The evaporation rate and solubility of the solvent are two critical factors that influence the quality of the PU paint layer. If the solvent evaporates too quickly, the paint layer will dry unevenly, be prone to cracking, and the paint surface may become rough and textured. Conversely, if it evaporates too slowly, the paint will take a long time to dry, easily accumulate dust, and lose its gloss. Therefore, it’s essential to choose a solvent with an appropriate evaporation rate for your application conditions to ensure the PU paint layer is smooth, evenly colored, and durable.

Compatibility of the Solvent with PU Paint Types

Solubility is a crucial criterion that determines the compatibility between the solvent and PU paint. A quality solvent must effectively dissolve the PU resin without altering the paint’s chemical properties. If the solvent is too weak, the paint layer will clump, have uneven color, or not adhere well to the surface. Conversely, if the solvent is too strong, it can break down the PU resin structure, reducing its resistance and causing the paint layer to fade quickly. Therefore, choosing the correct solvent with the appropriate solubility will help the paint layer achieve smoothness, even color, and long-lasting durability.

Safety and Environmental Standards

Each type of PU paint has its own unique formulation and properties, so not all solvents are suitable for dilution. Using an incompatible solvent can reduce adhesion, alter the paint’s color, and cause patchy discoloration. To ensure effective application and maintain the quality of the painted surface, you should always consult the PU paint manufacturer’s guidelines or conduct a small test on an inconspicuous area before applying it to the entire surface.

Durability and Adhesion of the Paint Layer After Mixing

The durability and adhesion of the paint layer after mixing with a solvent are crucial factors that determine the quality and success of a project. Using the appropriate solvent will help the PU paint layer adhere firmly to wood, metal, or concrete surfaces, minimizing peeling or cracking when exposed to harsh weather conditions. Therefore, choosing the correct PU paint solvent will result in a beautifully colored, durable, and aesthetically pleasing painted surface for a long time.

Common Types of Solvents for PU Paint

Based on available information, here are some commonly used solvents for diluting PU paint:

Specialized PU Thinners (K-CHEM Thinner, OSEVEN Thinner, etc.)

• Characteristics: These are solvent blends specifically formulated for PU paints. They are typically non-toxic, have a mild odor, and dry quickly.
• Applications: Used to thin PU paints to enhance adhesion and prevent peeling, making them suitable for wood and metal surfaces.
• Advantages: They are optimized for PU paints and are generally safer than general-purpose solvents.
• Disadvantages: Their cost is higher compared to common solvents.

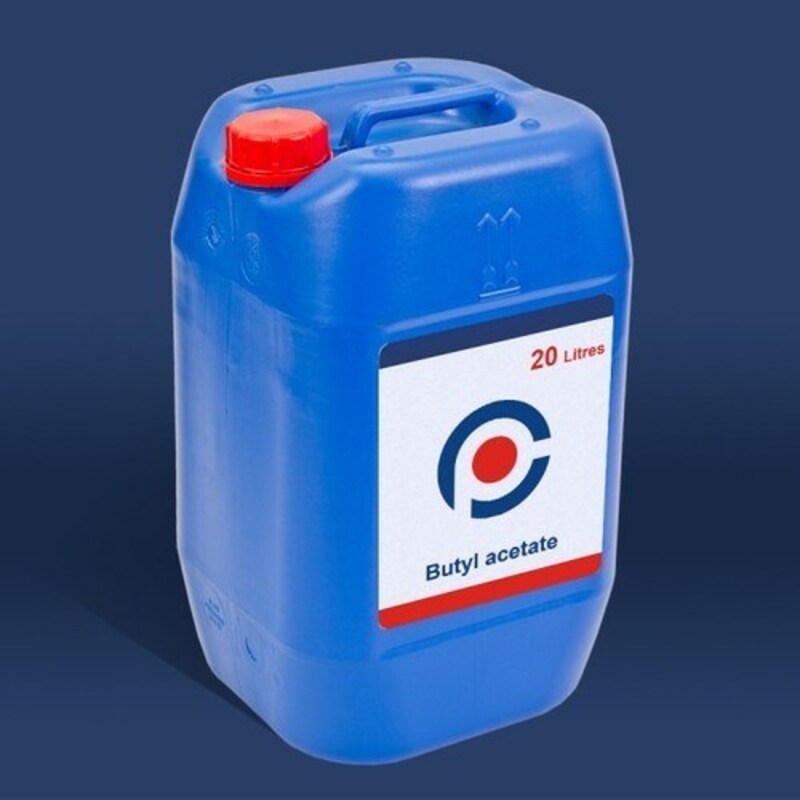

Butyl Acetate

• Characteristics: A co evaplorless liquid with a fruity odor, low toxicity, and a mediumoration rate.
• Applications: Used for thinning PU acrylic paints, helping to control drying time and increase gloss.
• Advantages: Has a mild odor and is safer compared to toluene and xylene.
• Disadvantages: It may be less commonly available in some markets.

Acetone (C3​H6​O)

• Characteristics: A colorless liquid with a pungent, sweet odor. It’s highly volatile, flammable, and mixes well with water.
• Applications: Used to thin PU paints, especially those that require fast drying. Acetone effectively dissolves nitrocellulose, cellulose acetate, and cellulose ethers, helping to reduce viscosity.
• Advantages: Its high evaporation rate makes it suitable for PU paints that need to dry quickly.
• Disadvantages: It’s highly flammable and requires careful storage.

Xylene (C8​H10​)

• Characteristics: A colorless liquid with a mild, sweet odor. It’s insoluble in water and has a slower evaporation rate than Toluene.
• Applications: Used for thinning surface PU paints, epoxy paints, and other industrial coatings. It’s often preferred when a slower drying film is desired.
• Advantages: Offers good solvency and is less prone to forming air bubbles, making it suitable for PU paints on metal and wood.
• Disadvantages: It has higher toxicity and should be used in well-ventilated areas.

Toluene

• Characteristics: A clear, colorless liquid that evaporates quickly and is sparingly soluble in water but highly soluble in solvents like acetone and ketones.
• Applications: Often used as a substitute for benzene in PU paint thinning, especially when high solvency and fast drying are needed.
• Advantages: Provides excellent solvency, making it suitable for glossy PU paints.
• Disadvantages: It is toxic and can cause lung damage if inhaled at high concentrations.

Common Mixing Ratios for PU Paint Solvents

The mixing ratio for PU paint depends on the type of paint (primer, color coat, clear coat), the application tool (brush, roller, spray gun), and the manufacturer’s recommendations. Here are some common ratios:

PU Primer

• Ratio: 2 parts primer : 1 part hardener : 3-5 parts solvent (thinner/PU gasoline).
• Example: 200ml primer + 100ml hardener + 300-500ml solvent.
• Note: Adjust the amount of solvent to achieve the appropriate viscosity for your spray gun or brush.

PU Color Coat

• Ratio: 2 parts color paint : 1 part hardener : 5 parts solvent + a small amount of color concentrate.
• Example: 200ml color paint + 100ml hardener + 500ml solvent + color concentrate (adjust according to desired shade).
• Note: Add color concentrate slowly to achieve the desired color.

PU Clear Coat

• Ratio: 2 parts clear coat : 1 part hardener : 3-5 parts solvent.
• Example: 200ml clear coat + 100ml hardener + 300-500ml solvent.
• Note: Adjust the solvent amount to control the gloss level (more solvent for lower gloss).

Industrial PU Paint (e.g., PPG Spectracron)

• Ratio: 10 parts base paint : 1 part hardener : solvent to adjust viscosity.
• Example: 1000ml base paint + 100ml hardener + thinner (according to manufacturer’s instructions).

Maximum Dilution

• Brush/Roller: Maximum 10% solvent of the total mixture.
• Air Spray Gun: Maximum 25% solvent.
• Airless Spray Gun: Maximum 5% solvent.

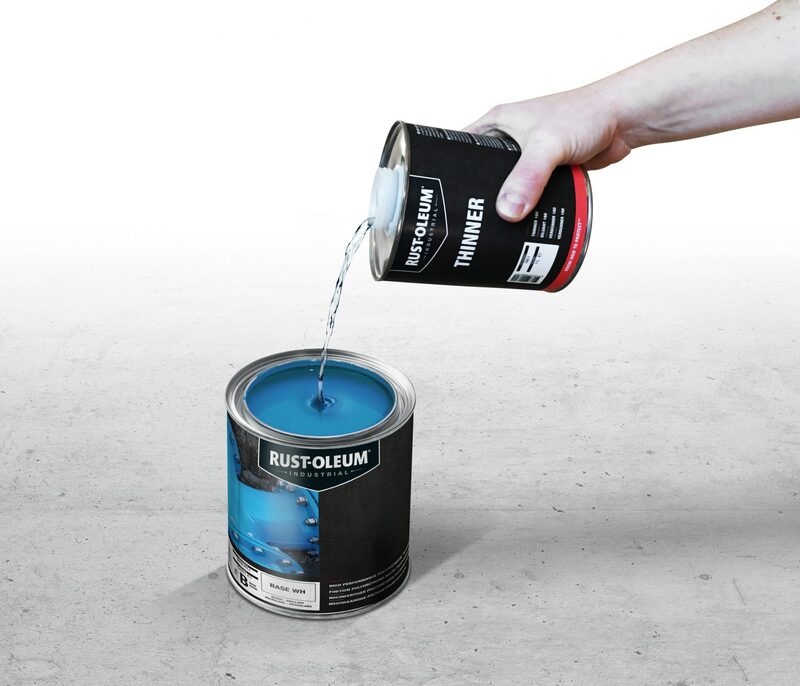

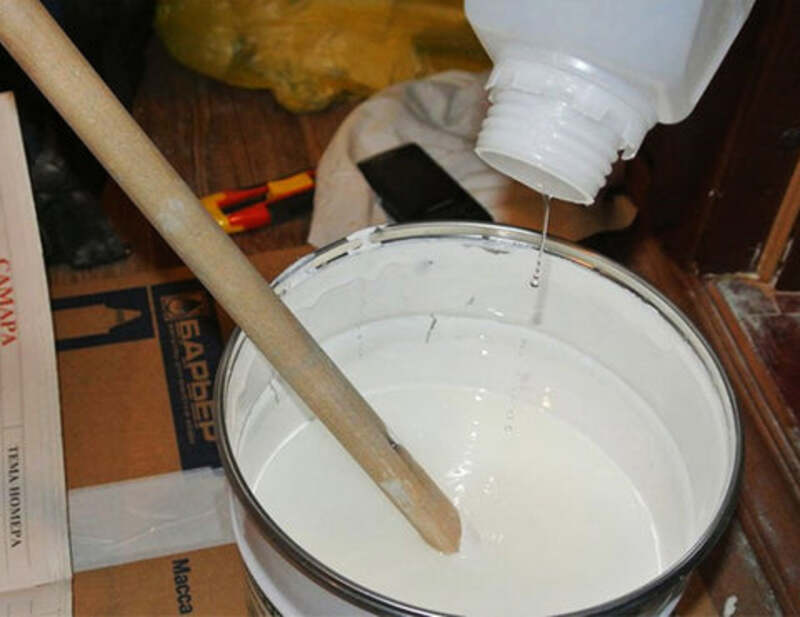

How to Mix PU Paint with Solvent

Here’s a standard technical process for mixing PU paint:

Step 1: Prepare Tools and Materials

• Materials: PU paint (primer, color, clear coat), hardener, solvent (thinner/PU gasoline), color concentrate (if needed).
• Tools: Digital scale or measuring cup, stirring stick, spray gun/brush/roller, corrosion-resistant container.
• Protective Gear: Gloves, mask, safety glasses, protective clothing.

Step 2: Mix the Primer

• Measure according to the ratio: 2 parts primer + 1 part hardener + 3-5 parts solvent.
• Stir the mixture thoroughly for 3-5 minutes with a stirring stick in a circular motion to ensure uniformity.
• Adjust the amount of solvent if necessary to achieve the appropriate viscosity (use a viscosity cup if available).

Step 3: Mix the Color Paint (if needed)

• Take the prepared primer mixture (2:1:5 ratio) and gradually add the color concentrate.
• Stir well and test the color on a sample surface to ensure the desired shade is achieved.
• Note: Do not add too much color concentrate to avoid altering the paint’s structure.

Step 4: Mix the Clear Coat

• Measure according to the ratio: 2 parts clear coat + 1 part hardener + 3-5 parts solvent.
• Stir the mixture thoroughly, adjusting the solvent to control the gloss level.
• Filter the mixture through a strainer to remove impurities before spraying.

Step 5: Check and Apply

• Check the viscosity by test spraying or brushing onto a sample surface.
• If the paint is too thick, add solvent slowly (5-10ml at a time) and stir well.
• Apply in a clean, dust-free, and well-ventilated environment.

Safety When Using PU Paint Solvents

PU paint solvents are often toxic, flammable, and can be harmful to your health if not used correctly. Here are the essential safety measures you need to follow:

1. Use Personal Protective Equipment (PPE)

• Always wear chemical-resistant gloves, a respirator, safety glasses, and long clothing to avoid direct contact with the solvent.
• If working for extended periods, use a respirator with chemical filters.

2. Work in a Well-Ventilated Environment

• Apply paint in an area with good ventilation or outdoors to prevent inhaling solvent vapors.
• If working in an enclosed space, monitor the concentration of solvent vapors in the air.

3. Avoid Ignition Sources and High Heat

• Solvents like acetone, xylene, and toluene are highly flammable.
• Do not smoke, use spark-producing equipment, or work near heat sources.
• Store solvents in a dry, cool place below 50°C, away from direct sunlight.

4. Handle Exposure Incidents

• Skin Contact: Immediately wash with soap and clean water for at least 15 minutes.
• Eye Contact: Rinse eyes with clean water and seek medical attention immediately.
• Inhalation: Move the affected person to a well-ventilated area; if breathing difficulties occur, call emergency services.

5. Waste Disposal

• Never pour solvents or leftover paint mixtures down drains, into rivers, or lakes.
• Collect chemical waste in specialized containers and dispose of it according to local regulations.

6. Read Manufacturer’s Instructions Carefully

• Each type of PU paint and solvent has specific usage guidelines.
• Adhere to the mixing ratios and safety warnings from the manufacturer.
• Use genuine, high-quality solvents to avoid adverse chemical reactions or reduced paint quality.

7. Proper Storage

• Close solvent containers tightly after use.
• Store them in a covered warehouse, away from sunlight and heat sources.

Important Considerations When Using PU Paint Solvents

• Choose the Right Solvent: Never use solvents of unknown origin or those incompatible with PU paint. This can lead to clumping, air bubbles, or damage to the paint film. Always ensure the solvent is specifically designed for PU applications.
• Check the Mixing Ratio: Mixing too much solvent will make the paint too thin, reducing its gloss and adhesion. Conversely, too little solvent will make the paint difficult to apply, potentially resulting in a wrinkled or peeling surface. Stick to the recommended ratios for optimal results.
• Consult an Expert: If you’re unsure about the correct mixing ratio or application method, don’t hesitate to contact your supplier or a technical specialist for advice.

We hope this article has provided you with useful information on the role, selection, and correct mixing ratios for PU paint solvents. To ensure your paint job achieves a beautiful, durable, and long-lasting finish, always choose high-quality solvents.

K-Chem is proud to be a reputable and quality supplier of solvents. Contact K-Chem immediately to receive consultation and quotes for solvents suitable for your specific project. K-Chem – Your Trusted Provider of Custom-Blended PU Paint Solvents, Offering Quality and Expertise. Businesses can leave their information or receive free consultation from our experienced team via the details below:
